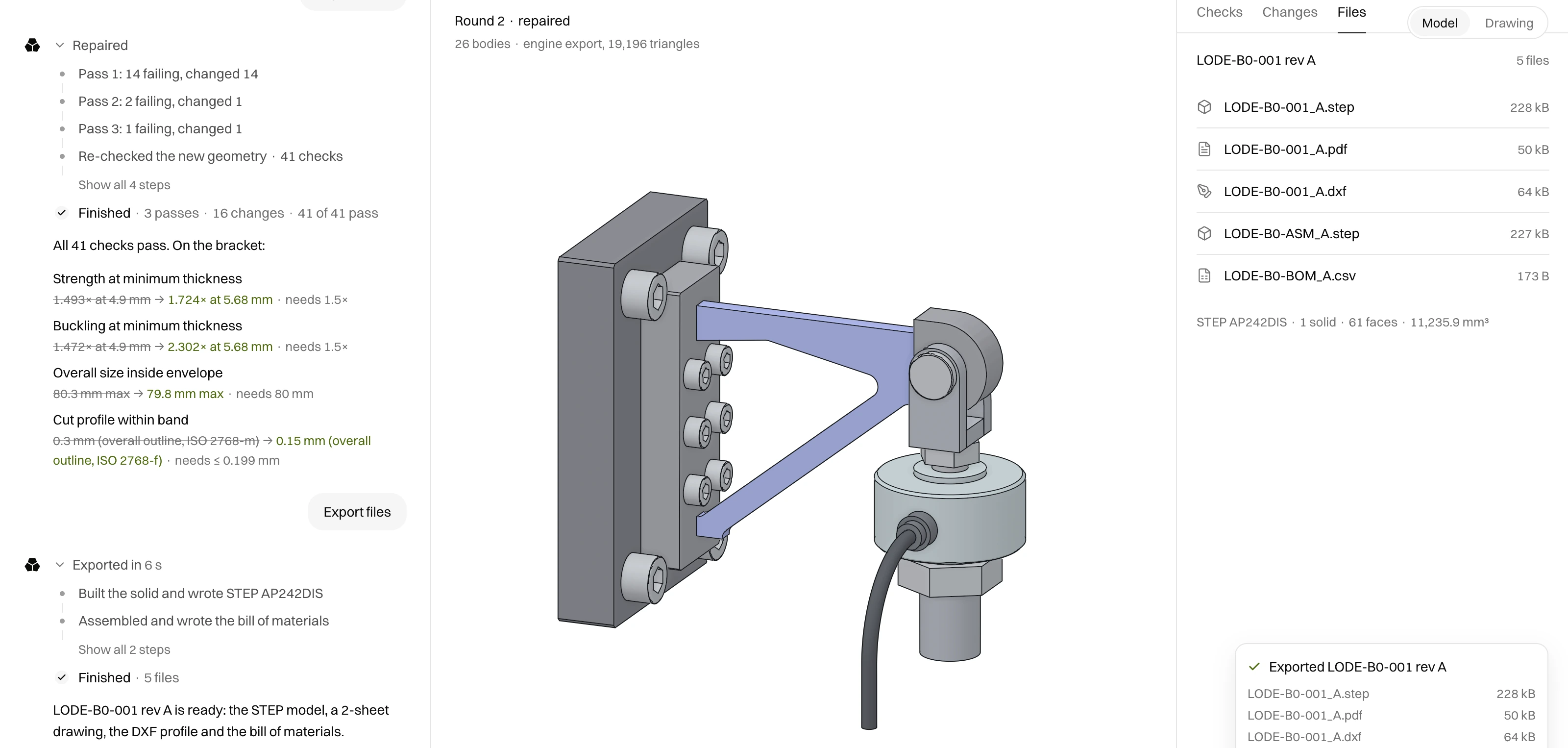

Files
The model, the drawing
and the parts list.
Brackets, beams and flexures get a STEP model, a drawing and a bill of materials.
01
Revision and status
The STEP model, the drawing and the bill of materials carry the same revision and status.
02

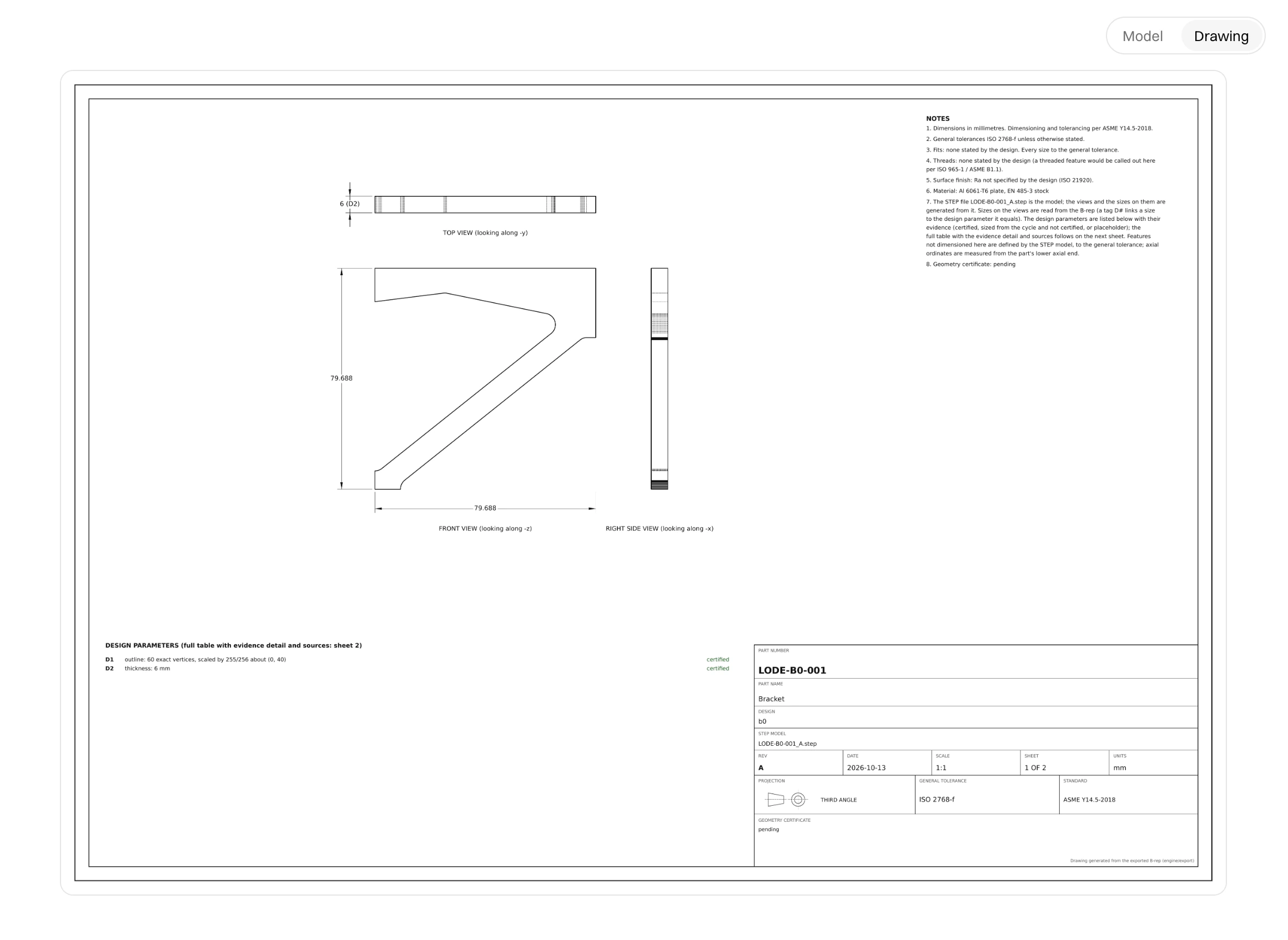

The drawing
The part’s views on a sheet, with the material in the notes.
03

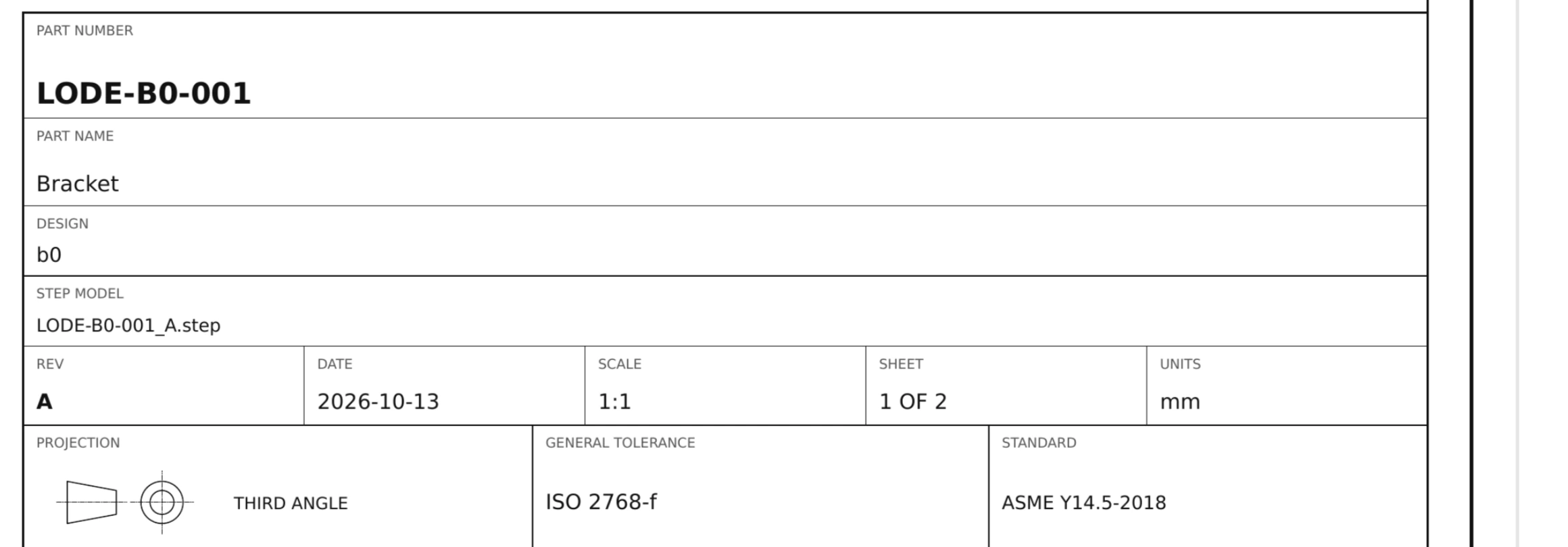

The title block
Revision and status, filled in from the design.
